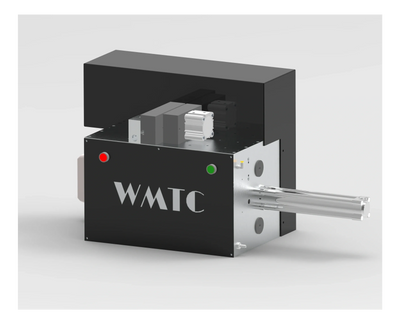

EM01 BEAD OVERSCRIBE MACHINE

The Overscribe Bead Miller is widely used by fabricators for the ease of inserting beads into a frame or sash when glazing.

Sawn mitred beads can often be difficult to insert especially in smaller squares.

The End Miller, machines two beads at a time and is suitable for all shapes and sizes of beads.

The factory version of the machine is fully automatic with a 3 Phase motor (single phase on request) for high volume work.

Net Weight: 65kg

Dimensions (Width, Depth, Height): 1040mm x 405mm x 500mm

Pneumatic Supply: 6-8 bar

Electrical Supply: 3 Phase (415v) 50-60Hz

Air Consumption: 7.70 CFM
